Electric Water Pump

Click Image to Enlarge

$239.00

Product Description

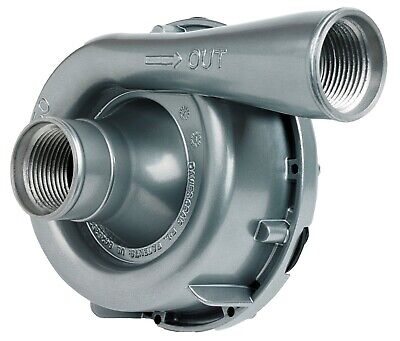

Electric Water Pump - EWP150 (ALLOY) (12V) (Part #8160) (Davies Craig)

Muscle up your engine cooling system with the Davies Craig EWP® 150 alloy Electric Water Pump.
Like all EWPs, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and ?worked? engines which develop excessive heat & intercooler applications.

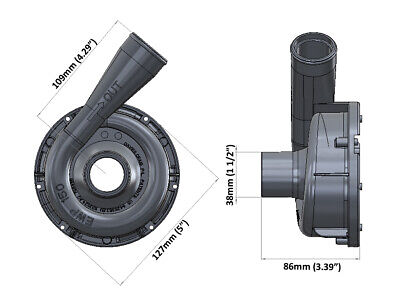

The compact EWP®150 alloy unit is manufactured with -AN16 (12) internal inlet and outlet threads for neat, tight screw-in fitting applications.

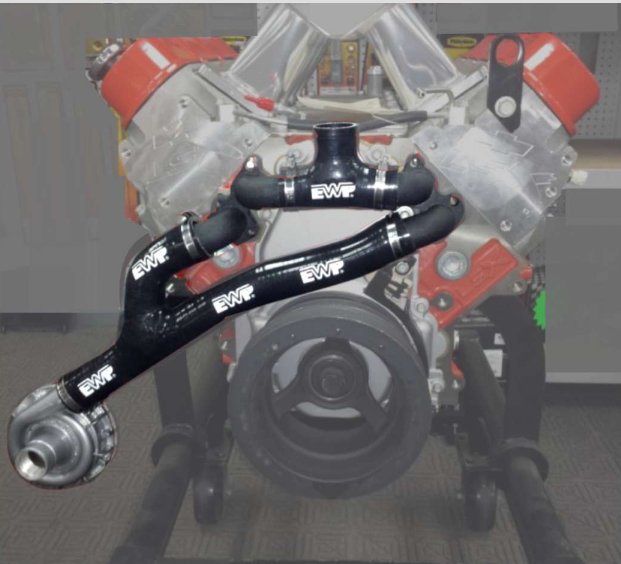

This rugged alloy hi-flow electric water pump is designed to complement or replace the engine?s existing mechanical water pump.
This essential performance accessory increases power to your vehicle?s drive wheels and improves coolant temperature control.

Davies, Craig is renowned for its innovative, high-output circulation pumps.
The Electric Water Pump (EWP) embodies cutting edge technology utilising a printed circuit "pancake motor" matched to a uniquely efficient impeller employing the latest advances in fluid dynamics.

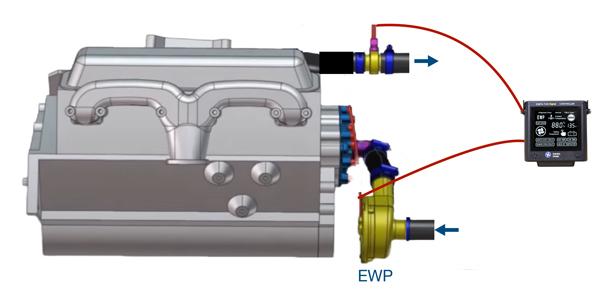

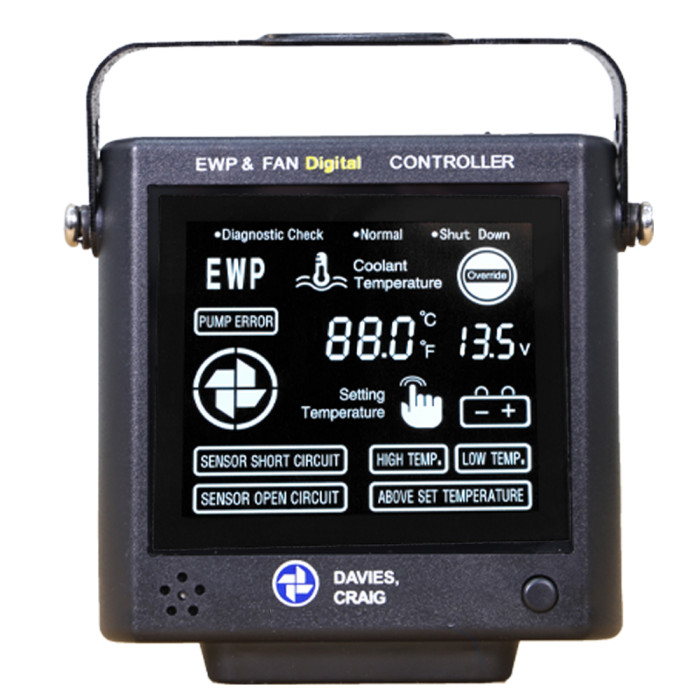

The EWP functions as a Smart Pump when installed in conjunction with the patented Digital Controller.
A selected temperature is maintained via pump speed modulation.
Additionally, the Smart Pump monitors rate of temperature change and adjusts speed accordingly.

Below more details to download.

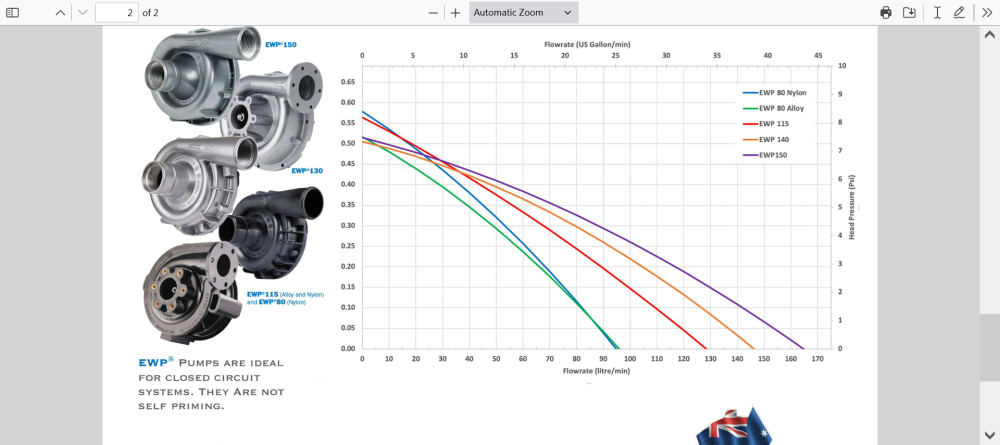

https://www.daviescraigmarine.com/media/2473/1675134986.EWP.pdf

Details:

TECHNICAL SPECIFICATIONS
Operating voltage-----------------3V DC to 15V DC
Maximum current-------------------------10A @ 13V
Flow rate (max)-150L/min (39.63 US gal/min) @ 13V DC
Operating temp.------40° to 130°C (-40° to 266°F)
Pump design-Clockwise centrifugal with volute chamber
Pump weight-----------------------1,170 grams (2.6 lb)
Pump material --------- Aluminium (Powder Coated)
Burst pressure-----------------------500 kPa (72.5 psi)
Seal ------------------------------------Ceramic face seal
Self Priming-No, none of our pumps are self-priming
Fits hose size----------35mm to 51mm (1.38? to 2?)
Push-On fitting Size-------EWP Inlet & Outlet 38mm
• with 3mm Sleeve (#8510) 44mm
• with 6mm Sleeve (#8511) 51mm
Internal Thread-------------Inlet & Outlet: -16AN (12)
